TSTORMS Tutorial
This notebook works through a complete TCTrack workflow using TSTORMS to detect and track tropical cyclones in ERA5 reanalysis data.
We start by installing the tracker, then obtain and preprocess the example data, run the tracking, and finally visualise the resulting tracks.
Installing TSTORMS
First we need to install the underlying TSTORMS software.
This requires GNU make, a Fortran compiler (gfortran is assumed, though others are possible) and NetCDF with Fortran bindings. If these are not included on your system and you are using conda they can be installed with:
conda install -c conda-forge gfortran make netcdf-fortran
To install TSTORMS we use the `install_tstorms.sh <https://github.com/Cambridge-ICCS/TCTrack/blob/main/tutorial/install_tstorms.sh>`__ script, which will clone and build TSTORMS locally under the tutorial directory. Read the script carefully to understand and check that you are happy with what it will do before running the cell.
[1]:
import subprocess
subprocess.run(["./install_tstorms.sh"], check=True)
TSTORMS is already installed, skipping installation.
[1]:
CompletedProcess(args=['./install_tstorms.sh'], returncode=0)
Obtaining Data
We will use example data from the ERA5 reanalysis dataset from 1950-09-01 to 1950-09-07.
The following cell downloads a pre-prepared bundle from the TCTrack GitHub releases and extracts the NetCDF files into a data/ directory using the fetch_data function from fetch_data.py.
The data can alternatively be downloaded from the Copernicus Climate Data Store. There is another function in fetch_data.py to do this, but this requires an account and API key.
[2]:
from fetch_data import fetch_data
fetch_data()
Downloading data...
Done.
Preprocessing of Data
The data now needs to be preprocessed into the form required by TSTORMS. This will be done here using the preprocessing helper functions.
The preprocessed data will be put in data_processed/.
We need the following variables:
Surface (10m) wind components
Vorticity at 850 hPa
Mean sea-level pressure
Mean temperature over 500-200 hPa
All of these are already included in the downloaded data, except for the mean temperature which must be calculated.
Each variable must also be in its own file with specific variable / coordinate names, an unlimited time dimension, updated time units (so the values are not negative) and an ascending latitude. We can create a helper function (preprocess_tstorms_input) to do this.
[3]:
import os
import cf
from tctrack import preprocessing
# Specify file structure
data_in_dir = "data"
data_dir = "data_processed"
os.makedirs(data_dir, exist_ok=True)
def preprocess_tstorms_input(
field: str | cf.Field, nc_name: str, output_file: str
) -> None:
"""Update the dimensions and netcdf metadata, then write to a file."""
# Remove any size-1 dimensions
field = preprocessing.squeeze_field(field)
# Change time units so there are no negative values
field = preprocessing.set_time_units(field, "days since 1950-01-01")
# Flip latitude so it is ascending
field = preprocessing.flip_axis(field, "Y")
# Update the netcdf metadata and write to file
preprocessing.set_netcdf_info(
field,
nc_name=nc_name,
output_file=output_file,
coord_nc_names={"time": "time", "latitude": "lat", "longitude": "lon"},
axis_unlimited="T",
)
Write the sea-level pressure and surface wind components to the output directory in separate files.
[4]:
field_u10, field_v10, field_msl = preprocessing.separate_variables(
f"{data_in_dir}/era5_sfc.nc",
output_files={},
return_order=["u10", "v10", "msl"],
)
preprocess_tstorms_input(field_msl, "slp", f"{data_dir}/slp.nc")
preprocess_tstorms_input(field_u10, "u_ref", f"{data_dir}/u_ref.nc")
preprocess_tstorms_input(field_v10, "v_ref", f"{data_dir}/v_ref.nc")
del field_msl, field_u10, field_v10 # free memory
Then the vorticity at 850 hPa.
[5]:
preprocess_tstorms_input(
f"{data_in_dir}/era5_vo.nc", "vort850", f"{data_dir}/vort850.nc"
)
Finally, take a mean over pressure levels of the temperature and write it to the output directory.
[6]:
field_t = preprocessing.collapse_field(f"{data_in_dir}/era5_t.nc", "mean", axes="Z")
preprocess_tstorms_input(field_t, "tm", f"{data_dir}/tm.nc")
del field_t # free memory
Running the code
TSTORMS involves two steps:
Detection - Identifying tropical storm candidates at each timestep.
Stitching - Combining these into tracks and filtering.
Refer to the TSTORMS page in the documentation for further information about what is going on in these steps.
We first need to set up the base parameters (the location of the TSTORMS installation, and the input / output directories) using TSTORMSBaseParameters, as well as the parameters for both detection and stitching using TSTORMSDetectParameters and
TSTORMSStitchParameters. These can be specified manually, but here we will use the "default" parameter set (provided by the `parameter_set <https://tctrack.readthedocs.io/en/latest/api/tstorms_api.html#tctrack.tstorms.parameter_set>`__ function) which follows the [Vitart2001] paper.
[7]:
from tctrack import tstorms
tstorms_params, detect_params, stitch_params = tstorms.parameter_set(
"default",
tstorms_dir=f"{os.getcwd()}/TSTORMS",
output_dir="tstorms_outputs",
)
Finally, we create the TSTORMS tracker object with our defined parameters and run the tracker over the preprocessed input files. Saving the results to tracks_tstorms.nc.
[8]:
# Define and run the tracker
tstorms_tracker = tstorms.TSTORMSTracker(tstorms_params, detect_params, stitch_params)
input_files = [
f"{data_dir}/u_ref.nc",
f"{data_dir}/v_ref.nc",
f"{data_dir}/vort850.nc",
f"{data_dir}/tm.nc",
f"{data_dir}/slp.nc",
]
tstorms_tracker.run_tracker(input_files, "tracks_tstorms.nc")
Executing Detect...
Detect completed successfully.
First 12 lines of output:
/home/sam/rse/tctrack/main/tutorial/data_processed/u_ref.nc
/home/sam/rse/tctrack/main/tutorial/data_processed/v_ref.nc
/home/sam/rse/tctrack/main/tutorial/data_processed/vort850.nc
/home/sam/rse/tctrack/main/tutorial/data_processed/tm.nc
/home/sam/rse/tctrack/main/tutorial/data_processed/slp.nc
imx, jmx, nmx = 1440 721 28
year, month, day, hour = 1950 9 1 0
...
Last 12 lines of output:
year, month, day, hour = 1950 9 7 6
1950 9 7 6 10
year, month, day, hour = 1950 9 7 12
1950 9 7 12 8
year, month, day, hour = 1950 9 7 18
1950 9 7 18 7
Executing Stitch...
Stitch completed successfully.
First 12 lines of output:
1 0 1 9 1950 6
2 6 1 9 1950 7
3 12 1 9 1950 8
4 18 1 9 1950 9
5 0 2 9 1950 9
6 6 2 9 1950 9
7 12 2 9 1950 7
8 18 2 9 1950 10
9 0 3 9 1950 6
10 6 3 9 1950 9
11 12 3 9 1950 11
12 18 3 9 1950 13
...
Last 12 lines of output:
21 0 6 9 1950 3
22 6 6 9 1950 5
23 12 6 9 1950 2
24 18 6 9 1950 9
25 0 7 9 1950 7
26 6 7 9 1950 10
27 12 7 9 1950 8
28 18 7 9 1950 7
*********************************************
End of file reading record 29
*********************************************
dday= 0.250000000
Inspecting the output
The output file is a CF-NetCDF file containing the tracks, along with variables such as wind speed and sea-level pressure along each track. The structure can be inspected with ncdump -h tracks_tstorms.nc, or read directly with cf-python:
[9]:
tracks = cf.read("tracks_tstorms.nc")
tracks
[9]:
[<CF Field: air_pressure_at_mean_sea_level(trajectory(3), observation(21)) Pa>,
<CF Field: atmosphere_relative_vorticity(trajectory(3), observation(21)) s**-1>,
<CF Field: wind_speed(trajectory(3), observation(21)) m s**-1>]
[10]:
for field in tracks:
print(f"{field.long_name}: {field.shape}")
Mean sea level pressure: (3, 21)
Vorticity (relative): (3, 21)
Surface Wind Speed: (3, 21)
Visualising Results

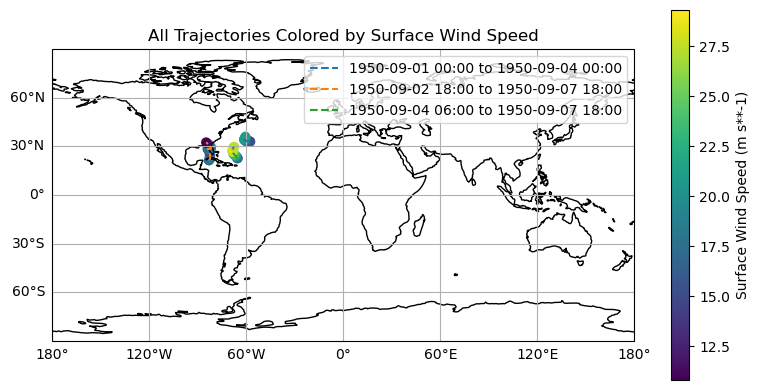

Finally we can visualise the results by plotting the tracks on a map.
[11]:
import cartopy.crs as ccrs
import matplotlib.pyplot as plt
import numpy as np
# Extract the wind speed field and its coordinates as arrays
wind_field = tracks.select_field("wind_speed")
lats = wind_field.coordinate("latitude").array
lons = wind_field.coordinate("longitude").array
times = wind_field.coordinate("time").dtarray
intensity = wind_field.array
# Get intensity metadata for labels
intensity_name = wind_field.get_property("long_name")
intensity_units = wind_field.get_property("units")
min_intensity = np.nanmin(intensity)
max_intensity = np.nanmax(intensity)
[12]:
plt.figure(figsize=(8, 4))
ax = plt.axes(projection=ccrs.PlateCarree())
ax.set_extent([-180, 180, -90, 90])
ax.coastlines()
gl = ax.gridlines(draw_labels=True)
gl.top_labels = False
gl.right_labels = False
gl.left_labels = True
gl.bottom_labels = True
# Plot each trajectory
for i in range(lats.shape[0]):
times_i = times[i].compressed()
label = (
f"{times_i[0].strftime('%Y-%m-%d %H:%M')} to "
f"{times_i[-1].strftime('%Y-%m-%d %H:%M')}"
)
mask = np.isfinite(lons[i])
pl = ax.plot(
lons[i, mask],
lats[i, mask],
"--",
transform=ccrs.PlateCarree(),
label=f"{label}",
)
sc = ax.scatter(
lons[i],
lats[i],
c=intensity[i],
cmap="viridis",
s=40,
vmin=min_intensity,
vmax=max_intensity,
transform=ccrs.PlateCarree(),
)
plt.colorbar(sc, label=f"{intensity_name} ({intensity_units})")
plt.title(f"All Trajectories Colored by {intensity_name}")
plt.legend()
plt.tight_layout()
plt.show()
