Tempest Extremes Tutorial

This notebook works through a complete TCTrack workflow using Tempest Extremes to detect and track tropical cyclones in ERA5 reanalysis data.

We start by installing the tracker, then obtain and preprocess the example data, run the tracking, and finally visualise the resulting tracks.

Installing Tempest Extremes

First we need to install the underlying Tempest Extremes software.

This requires a C++ compiler, CMake, and NetCDF with C++ bindings to be installed. If these are not included on your system and you are using conda they can be installed with:

conda install -c conda-forge cxx-compiler cmake netcdf-cxx

To install Tempest Extremes we use the `install_tempest_extremes.sh <https://github.com/Cambridge-ICCS/TCTrack/blob/main/tutorial/install_tempest_extremes.sh>`__ script, which will clone and build Tempest Extremes locally under the tutorial directory, as described on the build. Read the script carefully to understand and check that you are happy with what it will do before running the cell.

Finally, it will update the PATH to make the Tempest Extremes executables available.

Note: while the PATH is updated by the script, this is not inherited by the notebook. Hence why we do it again here.

import os
import subprocess

subprocess.run(["./install_tempest_extremes.sh"], check=True)

os.environ["PATH"] = f"{os.getcwd()}/tempestextremes/build/bin:{os.environ['PATH']}"

Tempest Extremes is already installed, skipping installation.

Obtaining Data

We will use example data from the ERA5 reanalysis dataset from 1950-09-01 to 1950-09-07.

The following cell downloads a pre-prepared bundle from the TCTrack GitHub releases and extracts the NetCDF files into a data/ directory using the fetch_data function from fetch_data.py.

The data can alternatively be downloaded from the Copernicus Climate Data Store. There is another function in fetch_data.py to do this, but this requires an account and API key.

from fetch_data import fetch_data

fetch_data()

Downloading data...
Done.

Preprocessing of Data

The data now needs to be preprocessed into the form required by Tempest Extremes.

We need the following variables:

• Mean sea-level pressure

• Geopotential at 300 and 500 hPa

• Orography (surface altitude)

• Surface windspeed

The first two are already included in the downloaded data. The orography can be calculated from the surface geopotential and the windspeed can be calculated from the 10m wind components. This will be done here using the preprocessing helper functions.

The preprocessed data will be put in data_processed/.

from tctrack import preprocessing

# Specify file structure
data_in_dir = "data"
data_dir = "data_processed"
os.makedirs(data_dir, exist_ok=True)

Write the geopotential and sea-level pressure to the output directory and load the surface wind speed components.

preprocessing.read_files(f"{data_in_dir}/era5_z.nc", output_file=f"{data_dir}/z.nc")

field_u10, field_v10 = preprocessing.separate_variables(
    f"{data_in_dir}/era5_sfc.nc",
    output_files={"msl": f"{data_dir}/msl.nc"},
    return_order=["u10", "v10"],
)

Calculate the surface wind speed from its components. We will use the ECMWF netcdf variable name (si10).

preprocessing.calculate_wind_speed(
    [field_u10, field_v10], nc_name="si10", output_file=f"{data_dir}/si10.nc"
)
del field_u10, field_v10  # free memory

Calculate the orography from the surface geopotential. The field is also squeezed to remove the size-1 time dimension.

GRAVITY = 9.80665  # Standard gravitational acceleration [m s-2]

field_orog = preprocessing.squeeze_field(f"{data_in_dir}/era5_sfc_z.nc")
field_orog = preprocessing.multiply_field(field_orog, 1 / GRAVITY)
field_orog = preprocessing.set_netcdf_info(
    field_orog,
    nc_name="orog",
    properties={
        "standard_name": "surface_altitude",
        "long_name": "Surface Altitude",
        "units": "m",
    },
    output_file=f"{data_dir}/orog.nc",
)
del field_orog  # free memory

Running the code

Tempest Extremes involves two steps:

1. Detection - Identifying tropical storm candidates at each timestep.

2. Stitching - Combining these into tracks and filtering.

Refer to the Tempest Extremes page in the documentation for further information about what is going on in these steps.

We first need to set up the parameters for both detection and stitching using TEDetectParameters and TEStitchParameters. These can be specified manually, but here we will use the "default" parameter set (provided by the `parameter_set <https://tctrack.readthedocs.io/en/latest/api/tempest_extremes_api.html#tctrack.tempest_extremes.parameter_set>`__ function) which follows the [Ullrich2017] paper.

Note that we specify "z" in the nc_names argument as our inputs use geopotential rather than the geopotential height that the paper uses. This argument can also be used to specify the netcdf variable names of the inputs, but we do not need to use this because our inputs have the expected names (msl, si10, z, orog).

import tctrack.tempest_extremes as te

detect_params, stitch_params = te.parameter_set("default", nc_names={"z": "z"})

Finally, we create the Tempest Extremes tracker object with our defined parameters and run the tracker over the preprocessed input files. Saving the results to tracks_tempest_extremes.nc.

# Define and run the tracker
te_tracker = te.TETracker(detect_params, stitch_params)

input_files = [
    f"{data_dir}/z.nc",
    f"{data_dir}/msl.nc",
    f"{data_dir}/si10.nc",
    f"{data_dir}/orog.nc",
]
te_tracker.run_tracker(input_files, "tracks_tempest_extremes.nc")

Executing DetectNodes...
DetectNodes completed successfully.
First 12 lines of output:
Arguments:
  --in_data <string> ["data_processed/z.nc;data_processed/msl.nc;data_processed/si10.nc;data_processed/orog.nc"]
  --in_data_list <string> [""]
  --in_connect <string> [""]
  --diag_connect <bool> [false]
  --out <string> ["/tmp/tmpnxork5_w/nodes.txt"]
  --out_file_list <string> [""]
  --searchbymin <string> ["msl"] (default PSL)
  --searchbymax <string> [""]
  --searchbythreshold <string> [""]
  --minlon <double> [0.000000] (degrees)
  --maxlon <double> [0.000000] (degrees)

...

Last 12 lines of output:
....Rejected (contour _DIFF(z(300hPa),z(500hPa))): 34
....Done
..Time 1950-09-07 18:00:00
....Total candidates: 7
....Rejected (  location): 0
....Rejected (    merged): 8103
....Rejected ( threshold): 0
....Rejected (contour msl): 101
....Rejected (contour _DIFF(z(300hPa),z(500hPa))): 34
....Done
..Done
------------------------------------------------------------

Executing StitchNodes...
StitchNodes completed successfully.
First 12 lines of output:
Arguments:
  --in <string> ["/tmp/tmpnxork5_w/nodes.txt"]
  --in_list <string> [""]
  --in_connect <string> [""]
  --out <string> ["/tmp/tmpnxork5_w/trajectories.txt"]
  --in_fmt <string> ["lon,lat,msl,orog,si10"]
  --range <double> [8.000000] (degrees)
  --mintime <string> ["54h"]
  --time_begin <string> [""]
  --time_end <string> [""]
  --prioritize <string> [""]
  --min_endpoint_dist <double> [8.000000] (degrees)

...

Last 12 lines of output:
..Connecting path segments.. Done
..Done
Filtering paths
..Paths rejected (mintime): 18
..Paths rejected (minendpointdist): 1
..Paths rejected (minpathdist): 0
..Paths rejected (threshold): 0
..Total paths found: 4
..Done
Writing results.. Done
Cleanup.. Done
------------------------------------------------------------

Inspecting the output

The output file is a CF-NetCDF file containing the tracks, along with variables such as wind speed and sea-level pressure along each track. The structure can be inspected with ncdump -h tracks_tempest_extremes.nc, or read directly with cf-python:

import cf

tracks = cf.read("tracks_tempest_extremes.nc")
tracks

[<CF Field: air_pressure_at_mean_sea_level(trajectory(4), observation(23)) Pa>,
 <CF Field: long_name=longitudinal grid index(trajectory(4), observation(23))>,
 <CF Field: long_name=latitudinal grid index(trajectory(4), observation(23))>,
 <CF Field: surface_altitude(trajectory(4), observation(23)) m>,
 <CF Field: wind_speed(trajectory(4), observation(23)) m.s-1>]

for field in tracks:
    print(f"{field.long_name}: {field.shape}")

Mean sea level pressure: (4, 23)
longitudinal grid index: (4, 23)
latitudinal grid index: (4, 23)
Surface Altitude: (4, 23)
Wind Speed: (4, 23)

As can be seen there are a total of four tracks (trajectory), with the longest having 23 points (observation). Any shorter tracks are padded up to this length.

Visualising Results

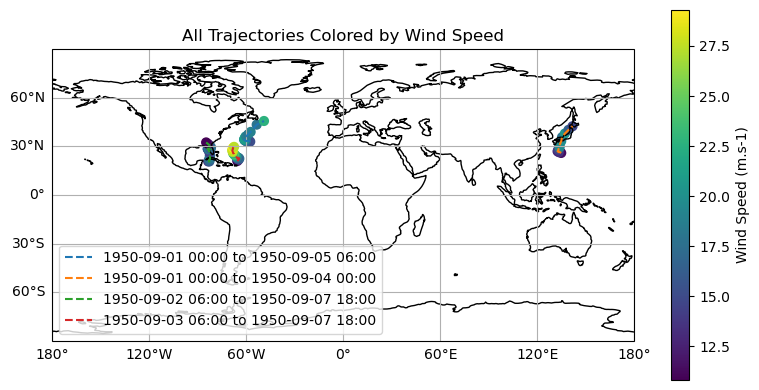

Finally we can visualise the results by plotting the tracks on a map.

import cartopy.crs as ccrs
import matplotlib.pyplot as plt
import numpy as np

# Extract the wind speed field and its coordinates as arrays
wind_field = tracks.select_field("wind_speed")
lats = wind_field.coordinate("latitude").array
lons = wind_field.coordinate("longitude").array
times = wind_field.coordinate("time").dtarray
intensity = wind_field.array

# Get intensity metadata for labels
intensity_name = wind_field.get_property("long_name")
intensity_units = wind_field.get_property("units")
min_intensity = np.nanmin(intensity)
max_intensity = np.nanmax(intensity)

plt.figure(figsize=(8, 4))
ax = plt.axes(projection=ccrs.PlateCarree())
ax.set_extent([-180, 180, -90, 90])
ax.coastlines()
gl = ax.gridlines(draw_labels=True)
gl.top_labels = False
gl.right_labels = False
gl.left_labels = True
gl.bottom_labels = True

# Plot each trajectory
for i in range(lats.shape[0]):
    times_i = times[i].compressed()
    label = (
        f"{times_i[0].strftime('%Y-%m-%d %H:%M')} to "
        f"{times_i[-1].strftime('%Y-%m-%d %H:%M')}"
    )
    mask = np.isfinite(lons[i])
    pl = ax.plot(
        lons[i, mask],
        lats[i, mask],
        "--",
        transform=ccrs.PlateCarree(),
        label=f"{label}",
    )
    sc = ax.scatter(
        lons[i],
        lats[i],
        c=intensity[i],
        cmap="viridis",
        s=40,
        vmin=min_intensity,
        vmax=max_intensity,
        transform=ccrs.PlateCarree(),
    )

plt.colorbar(sc, label=f"{intensity_name} ({intensity_units})")
plt.title(f"All Trajectories Colored by {intensity_name}")
plt.legend()
plt.tight_layout()
plt.show()
